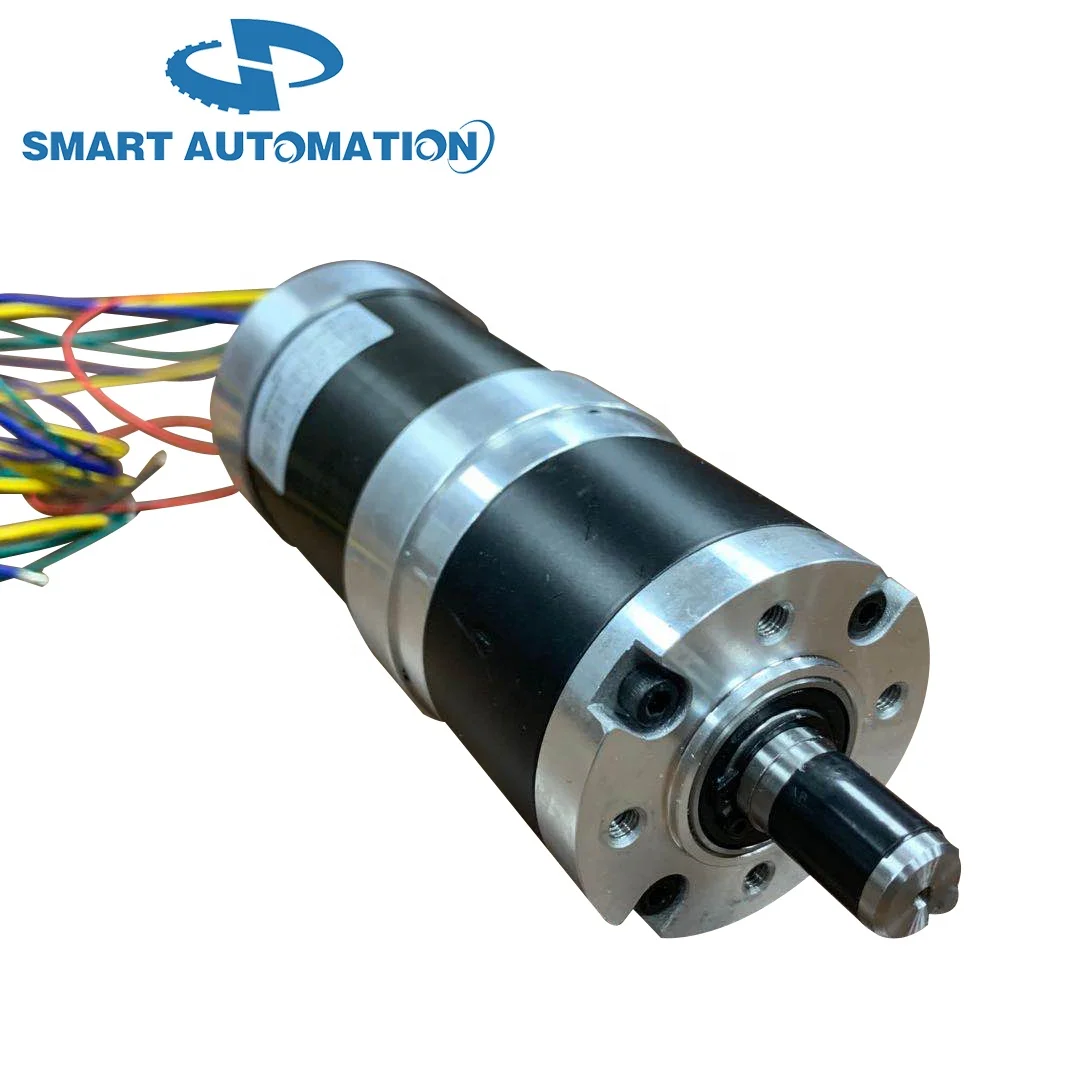

Size 63mm 60JXE450K.63RBL Series Brushless DC Planetary Gear Motor 12v 24v 36v 48v 50w 100w 200w Up To 20Nm 30Nm 45Nm

Name: Size 63mm 60JXE450K63RBL Series Brushless DC Planetary Gear Motor 12v 24v 36v 48v 50w 100w 200w Up To 20Nm 30Nm 45Nm
Brand: SMART AUTOMATION
Price: 1 USD

Size 63mm 60JXE450K.63RBL Series Brushless DC Planetary Gear Motor 12v 24v 36v 48v 50w 100w 200w Up To 20Nm 30Nm 45Nm Manufactures

Brand Name : SMART AUTOMATION

Model Number : OEM

Certification : CE

Place of Origin : Changzhou CHINA

Supply Ability : 10000 Piece/Pieces per Month

Packaging Details : To be negotiated

MOQ : 50

Price : To be negotiated

Delivery Time : To be negotiated

Payment Terms : D/A, T/T, L/C,D/P

Warranty : 3years

Port : Shanghai

Current / Phase : 1.68A

Speed(RPM) : 1rpm-1500rpm

Continuous Current(A) : customed

Usage : Car, Electric Bicycle, FAN, Home Appliance, machine, robot

Type : Micro Motor

Torque : upto 45N.m rated

Construction : Permanent Magnet

Commutation : Brushless

Protect Feature : Drip-proof

Contact Now

60JXE450K.63RBL Series Brushless DC Planetary Gear Motor, 12v 24v 48v 50w 100w 200w upto 45Nm

Brushless DC Planetary Gear Motor 60JXE450K.63RBL Series

Motor Main Specifications:

Bearing: High Quality Ball Bearing

IP54 Protection Class: IP54

Insulation Class: Class F / Working Temperature: -40℃~+140℃

Certifications: CE and ROHS

Electric connection

Lead No.	Lead Color	Lead Gauge	Function	DESCRIPTION
1	Red	UL1007/26AWG	VCC	SUPPLY VOLTAGE FOR HALL SENSORS
2	Black		GND	GROUND FOR HALL SENSORS
3	Yellow		HALL A
4	Green		HALL B
5	Blue		HALL C
6	Yellow	UL1007/14AWG	PHASE U
7	Green	UL1007/14AWG	PHASE V

Technique Specification

Size 63mm 60JXE450K.63RBL Series Brushless DC Planetary Gear Motor 12v 24v 36v 48v 50w 100w 200w Up To 20Nm 30Nm 45Nm

Reduction ratio	Rated tolerance torque	Max momentary tolerance torque	Efficiency	L (mm)	Weight(g)
1/3.6 1/4.25 1/5.33	4 N.m	12 N.m	90%	40.3±0.5	520
1/13 1/15 1/18 1/23 1/28	18 N.m	36 N.m	81%	53.8±0.5	710
1/43 1/52 1/61 1/72 1/96 1/121	36 N.m	72 N.m	73%	67.2±0.5	900
1/154 1/187 1/220 1/260 1/307 1/409 1/514 1/645 1/809	45 N.m	90N.m	66%	80.6±0.5	1100

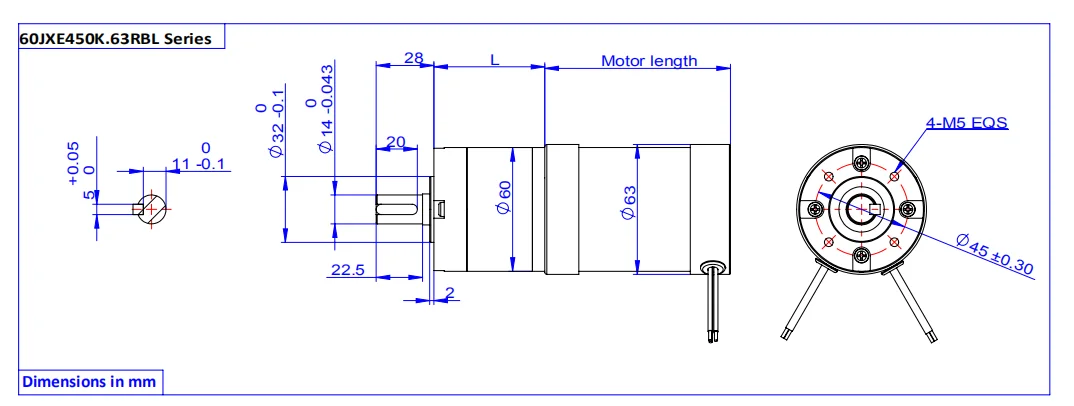

Drawing:

Size 63mm 60JXE450K.63RBL Series Brushless DC Planetary Gear Motor 12v 24v 36v 48v 50w 100w 200w Up To 20Nm 30Nm 45Nm
